Mod Shop – Nerf Raider – Paint Job

Somewhat different to the previous posts on this blog, this week we’ll be touching on my first aesthetic mod in a while. Back in my HvZ@ANU days we had very strict power restrictions, so we were forced to differentiate our blasters through aesthetic mods. Every blaster I used then was painted in some form or another. Since then however, the group I’ve been playing with recently has far more relaxed power restrictions, so I’ve been focusing far more on practical things. That won’t stop us though!

This walk through will cover the specifics involved with a Nerf Raider, but the general painting techniques can be applied to any blaster. Just take very special care in the disassembly stage to ensure that you’ll know how to put it back together.

I find it’s often best to stick to 2-3 colours and work with the existing lines of the blaster, but I’m not going to tell you how to choose aesthetic points.

__________________________________________________________________

Tools and materials needed

Screwdriver
Sponge + soapy water
Spray primer
Variety of spray paint colours
Scissors
Masking tape

__________________________________________________________________

As always, we’ll kick off the blaster itself.

Photobucket

Remove the screws in the priming handle, then the handle itself, then the screws in the rest of the shell.

Photobucket

As always, take a moment to familiarise yourself with the internals.

Photobucket

No seriously, there is going to be a decent amount of time between disassembly and reassembly. Know where things need to go and how they should work BEFORE you pull it apart any further.

Photobucket

Photobucket

Ok, satisfied that you know how it works? Lets move on.

Photobucket

Start by removing these two bars that hold the plunger in place.

Photobucket

Then you’ll be able remove the plunger, the tube and the priming bar. They should all just pop out once you’ve removed the four screws and the two securing bars.

Photobucket

We then have a similar process with the jam door. Remove the two bars that hold it in place and the door itself will come out.

Photobucket

Then go through and remove everything you can. Grab some masking tape and secure anything that moves or could come apart. Last thing you want is for the whole blaster not to work because you lost a seemingly insignificant spring.

Photobucket

Now put all the pieces we’ve removed in a zip lock bag.

Photobucket

You should now have a completely stripped shell.

Photobucket

Grab your masking tape and cover up any part you want to retain their stock colouring. Really take your time here because if you miss a bit it will take far longer to fix it up later than it would have to mask properly.

Photobucket

Repeat on the other half of the shell.

Photobucket

Hit it with a first coat of primer.

The tech with spray painting is to do long, consistent strokes. Start spraying on one side of the blaster and continue in a straight line all the way across the blaster until you’re past it. Always run with these strokes and never spray directly on to one specific spot. Many light coats will achieve a far better coverage than one heavy one.

Photobucket

Ensure that you completely cover everything you intend to cover.

Photobucket

Now move on to colour. Again we’re aiming for long, consistent strokes.

Photobucket

It should take a couple of coats to get a decent coverage. Allow sufficient time for each coat to dry and keep going until you’re happy basically.

Photobucket

In this case I was going for a two tone effect so the following day I went back and remasked different parts of the blaster.

Photobucket

Which then let me hit it with the second colour.

Photobucket

Again, a few coats were needed.

Photobucket

Once you’re happy with the coverage and have allowed suitable time to dry we can peel the tap off and get the first look at your masterpiece.

Photobucket

Mmmm, sexy.

Photobucket

Lets now start putting it back together. Again, I’m obviously going to cover off the specifics involved in reassembling a raider so if you’re doing a different blaster these last steps might not be so useful to you.

Photobucket

Grab your zip lock bag of parts and empty them out.

Photobucket

Wow there are a lot of pieces.

Photobucket

Grab the jam door and slot it into place.

Photobucket

Then grab these two parts.

Photobucket

Top one goes here. Two screws hold it in place.

Photobucket

Then the bottom piece.

Photobucket

Next we’ll do the tac rail attachments.

Photobucket

They slot in along the top of the blaster here.

Photobucket

Like so.

Photobucket

Grab this piece.

Photobucket

Place it here.

Photobucket

Like so.

Photobucket

Now for the dart tooth assembly.

Photobucket

It needs to go here.

Photobucket

Start with the front of the breech.

Photobucket

Then the dart tooth itself.

Photobucket

Then the part that holds it in place.

Photobucket

Next we have the barrel.

Photobucket

Funnily enough, it lives at the front of the blaster.

Photobucket

Place the barrel tube first.

Photobucket

Turn it this way up.

Photobucket

Then slot it in to place.

Photobucket

Like so.

Photobucket

Ok, so this next part wasn’t strictly necessary but the blaster was apart, I couldn’t not to a quick AR and seal improvement.

Photobucket

Check my previous post on modifying a Nerf Raider for the specifics but I’ll quickly go over it now anyway. Remove the o-ring and apply some teflon tape.

Photobucket

Put the o-ring back on and grease it up.

Photobucket

Tape up the release hole here.

Photobucket

Like so.

Photobucket

All right, lets get back in to the reassembly.

Photobucket

Place the breech assembly back in the blaster.

Photobucket

Move to the back.

Photobucket

Slide the plunger back over the plunger tube.

Photobucket

Now grab the two bars that hold the plunger in place. They go back in place in this order.

Photobucket

Top one first. Two screws hold it in place.

Photobucket

Then the bottom. Again, two screws.

Photobucket

Then well replace the catch.

Photobucket

It lives here.

Photobucket

Like so.

Photobucket

Then move to this blank spot just below the plunger rails.

Photobucket

And we’ll replace this locking/catch release bar like so.

Photobucket

Then the trigger.

Photobucket

Finally, this little dart holder in the handle.

Photobucket

Done! Mostly…

Photobucket

Put the other half of the shell on, replace the great assortment of screws and we’re basically there. You’ll obviously need to replace the priming handle and the back plunger cover. I forgot to take photos of that but I’m sure you can figure those ones out on your own.

Photobucket

All right, all done. One painted and now improved Raider. Forgot to take final photos before so here’s a quick one on the lounge room floor.

Photobucket

Tools and Consumables for Blaster Modding

This week’s post is a response to a readers request and will be a little different from the content we’ve seen so far. Lots of different websites out there show you how to do a whole host of basic blaster mods, but in the spirit of encouraging others to get out there and try stuff for themselves, I’m instead just posting a list of tools and consumables I use when modifying blasters. Obviously, most of these won’t be needed most of the time, but having the right tool available for any given job is always going to make your life significantly easier. Sure you can punch out an AR with a screwdriver and a hammer, but having a hand drill is going to do a far better job and save you time, effort and heartache.

Our journey today will be split up into three parts; Tools, Consumables and Electrics. The first two should be fairly self explanatory, while the third will cover an assortment of both tools and consumables that will only be needed when performing modifications on electronic based blasters. Along the way we’ll also cover off a few generic ideas that I think are useful when it comes to modifying practically any blaster.

_________________________________________________________________________

So without further ado, Tools!

Screwdrivers. Without a shadow of a doubt, the most important tools you’re going to need when modifying blasters are a set of screwdrivers. You will need an assortment of different sized pan head or phillips head screwdrivers, and having a few flat heads around never hurt anyone either.

A screwdriver may seem like an incredibly simple tool, and it is, but a remarkable number of people don’t think about what they’re doing with it. When using a screwdriver, turn it slowly and purposefully; if you feel it start to slip, stop immediately. Blasters typically use small/weak screws that can strip quite easily. That and you’re screwing into plastic, so it’s also quite easy to strip/break the shell when screwing back in to it. Also, use the correct sized driver for a given screw. Trying to force a larger screw with a smaller tip, will only end up stripping the head. If you only buy one thing towards modifying your blasters, make sure it’s a selection of different sized screwdrivers.
Photobucket

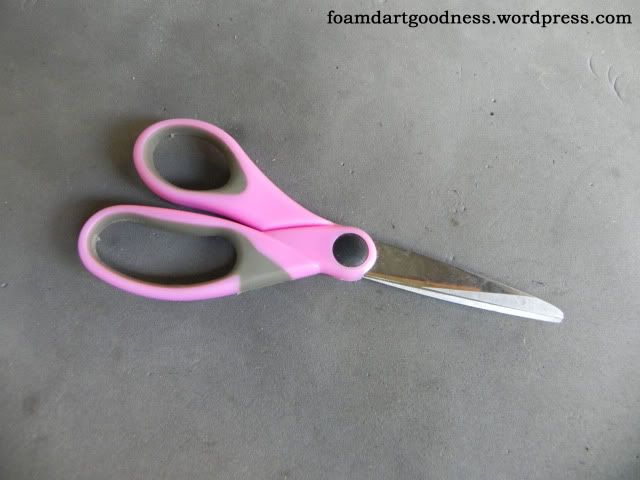

Scissors. Mostly used for cutting tape, I’m pretty sure you can probably figure out this one for yourself.

Photobucket

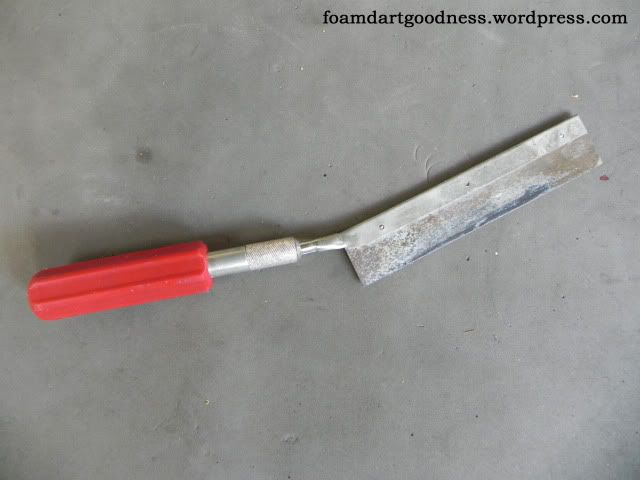

Modeling Saw. Admittedly I don’t actually use this all that much any more. Most of the time a Dremmel will do a better job and be significantly faster, but there is the odd occasion where the Dremel simply doesn’t fit and you need to cut something by hand.

Photobucket

Battery hand drill. Another incredibly useful, but often overlooked tool. As I mentioned at the start of this post, you *can* punch out an AR with a hammer and a screwdriver; however having the right tool (a hand drill) will both make the job easier and produce a better result. This is one of the more expensive tools we’ll be looking at today and could be difficult to justify if solely using it for modding blasters. If you don’t already own one, start thinking of other things you could potentially use it for and I’m sure you’ll be able to find the appropriate funds. While modifying blasters I mostly use mine for removing AR’s but there are plenty of other occasions where the ability to drill a hole in something is rather useful.

Photobucket

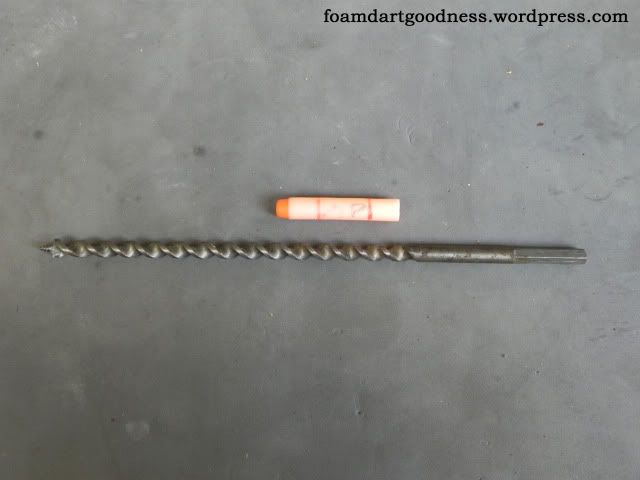

Extra long drill bit. Having the drill may be all well and good, but without a bit long enough to reach an AR, it’s probably not going to be of much use. Again, just go buy one. They’re not that expensive and will make your life much easier. Sure it might cost $15, but think how many mods you’re going to do with it! You could probably get away with something ~200mm long, but ~300mm is what I’ve got as it was what I could find.

Photobucket

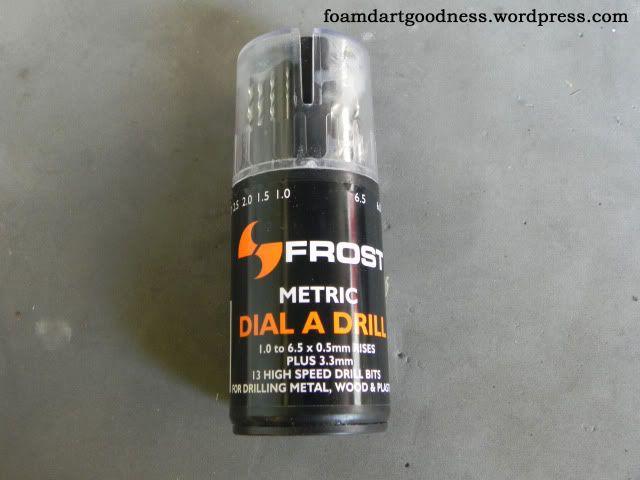

Generic drill bit set. If you’ve gone to all the effort of getting a drill you, may as well get a decent selection of bits. I’m sure I’ve used these for a whole bunch of assorted blaster modifications but I can’t for the life of me think of any specific examples.

Photobucket

Hot glue gun. Incredibly useful in the world of blaster modification. Hot glue is extremely easy to use, relatively cheap, and quite versatile. I’ve used hot glue for everything from gluing things together (shock horror I know), to reinforcing brittle parts of blaster shells, through to creating seals and plugging air leaks. If you’re going to go out and pick up a hot glue gun, splurge that little bit extra and get yourself a full sized one. The difference in price between it and one that uses the smaller sizes of glue sticks will be made up surprisingly quickly through the difference in glue sticks.

Photobucket

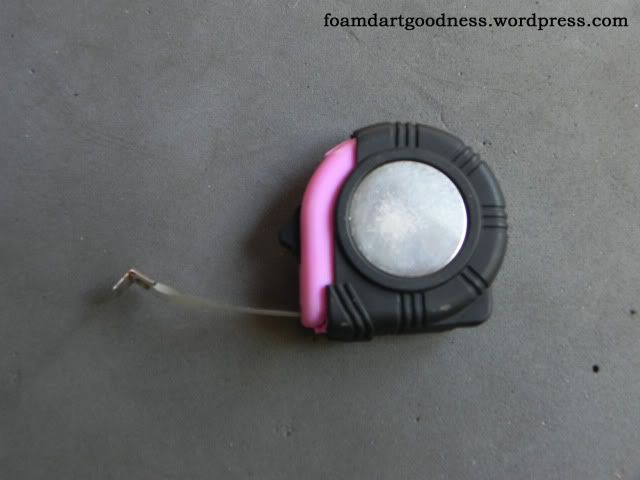

Tape measure. Used to measure things? Yeah, this one should be fairly self explanatory. Remember the age old adage of “measure twice, cut once”.

Photobucket

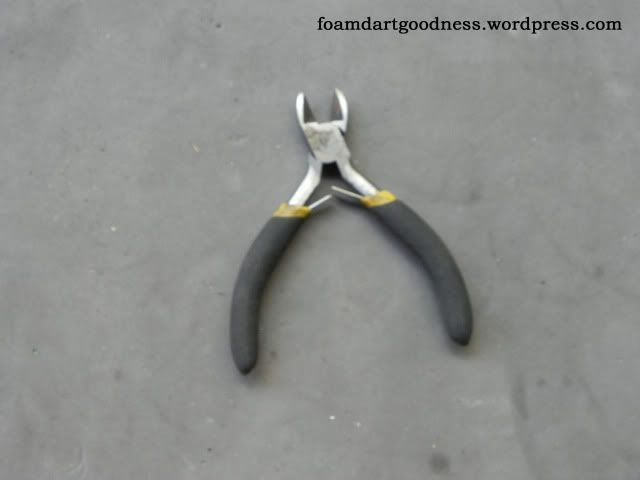

Side cutters. Another fairly straight forward tool. You won’t need it all that often, but situations will come up where you’ll think to yourself “if only I had a pair of side cutters…”

Photobucket

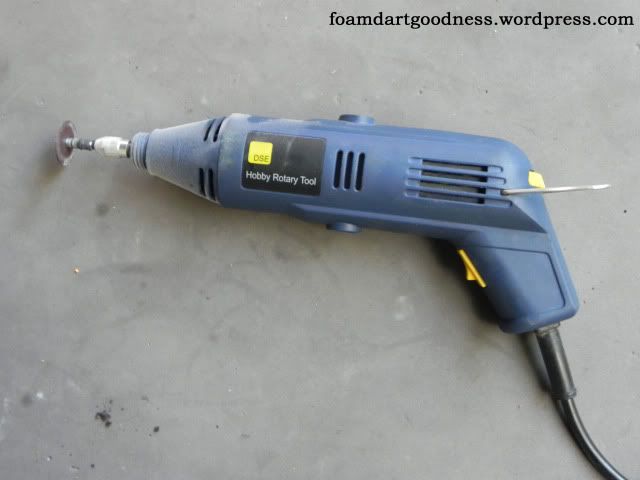

Dremel (or in my case the Rotary Hobby Tool). Typically I dislike referring to generic things by a specific brand name, but I dislike the generic term of ‘rotary tool’ even more. That, and nobody knows what a ‘rotary tool’ is. Another rather expensive tool to add to the collection but well worth it. Once you own a dremel you will find so many uses for it it’s not funny. I use a Dremel branded one at work regularly and I’ve had this one at home for years; I can’t say I prefer one over the other. Based on this, I’d recommend buying the cheaper off brand alternative.

Photobucket

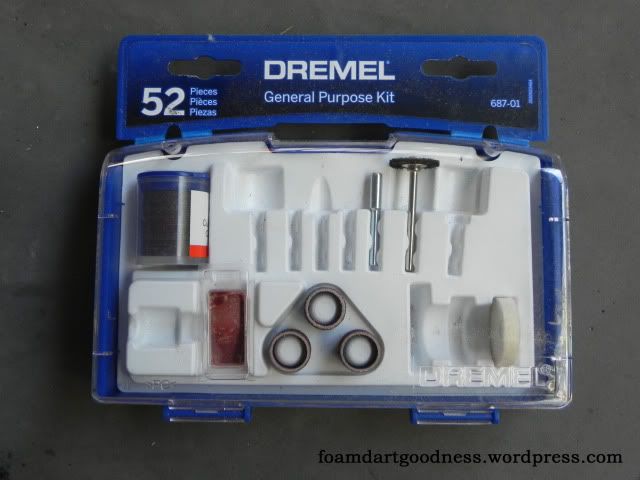

Dremel bits. Like the drill, the dremel isn’t particularly useful without bits. For blaster modification the two most common bits you’ll need are the cutting disc and the grinding wheel. As crazy as it sounds, the cutting disc cuts things, while the grinding wheel grinds things away. Unlike this tool itself, I do recommend that you stay with the Dremel branded bits. I’ve tried some of the off brand bits and they never seem to last as long as the Dremel ones do.

If you’re planning on working with brass barrels and breechs, I’d also suggest getting some polishing wheels too. Far easier than doing it by hand and can also get inside the brass as well.

Photobucket

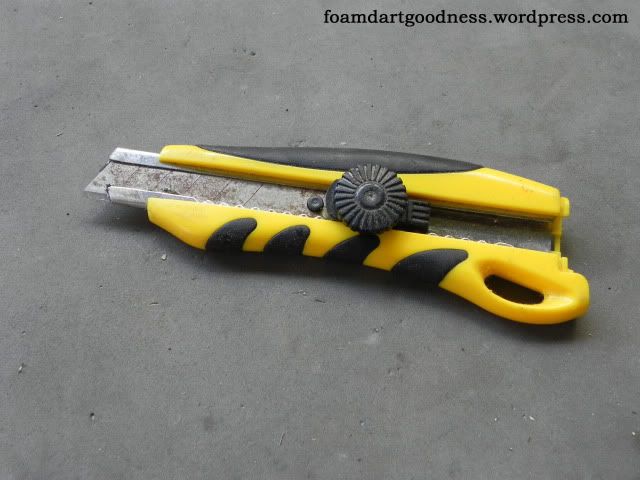

Knife. Retractable, snap off blades, one piece; whatever, just make sure it’s sharp and always cut away from yourself. Don’t do what Donny Don’t does!

Photobucket

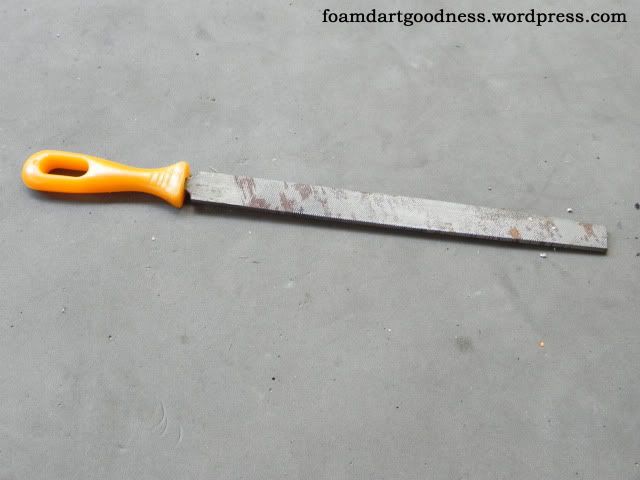

Hand Files. I know I’ve only pictured one here but you’ll want an assortment of relatively fine files. The most important one to have is a round file, at least 200mm long. This will allow you to clean up the dags left over after ramming a drill through an AR and it will make a difference. Beyond that I also have a collection of small files for very detailed work, and the large flat file pictured. Regularly you’ll just grind things away with your dremel, but there will be occasions where the hand tool is needed.

Photobucket

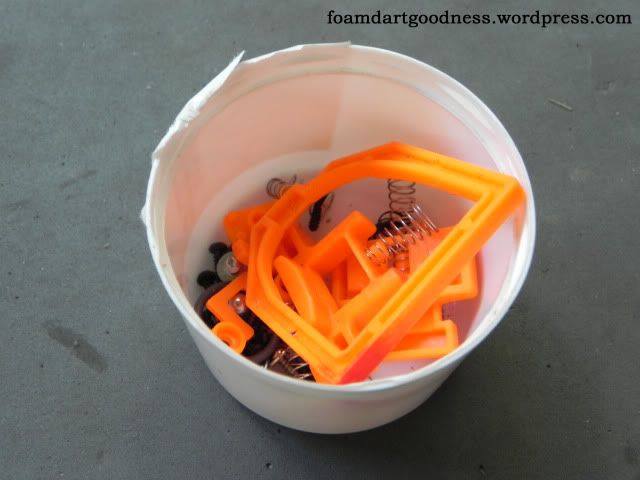

Small containers. Ok, so not really a tool as such but something I still strongly suggest having and feel it’s worth including. Small containers, such as spray can lids, are brilliant for storing screws and other small parts in whilst your blaster is in pieces. Everything just goes straight in to the container and you can’t loose parts. Always find something to put parts in, don’t lust leave them on the bench.

Photobucket

_________________________________________________________________________

Consumables!

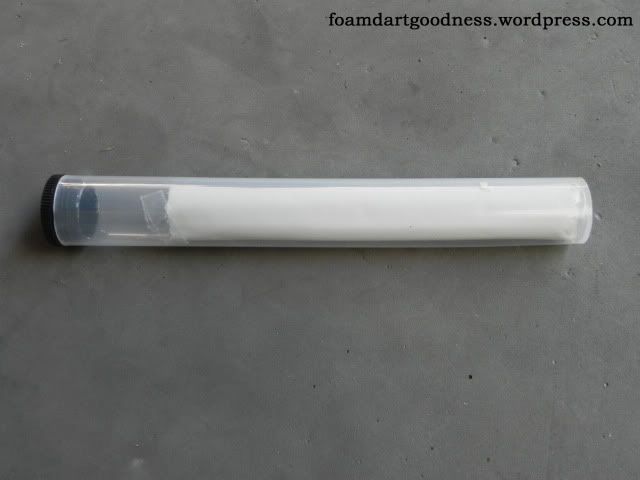

Teflon tape. Found in the plumbing section of your local hardware store, teflon tape is an incredibly thin form of tape. You’ll use it for padding out O-rings to improve the seal in your blasters. I’ll also mention here that you can achieve a similar outcome with electrical tape, but because it’s thicker you can’t be as precise and therefore won’t get as good a result.

Photobucket

Electrical tape. One of those things that’s just hand to have around. I mostly use it for holding blasters together for testing purposes.

Photobucket

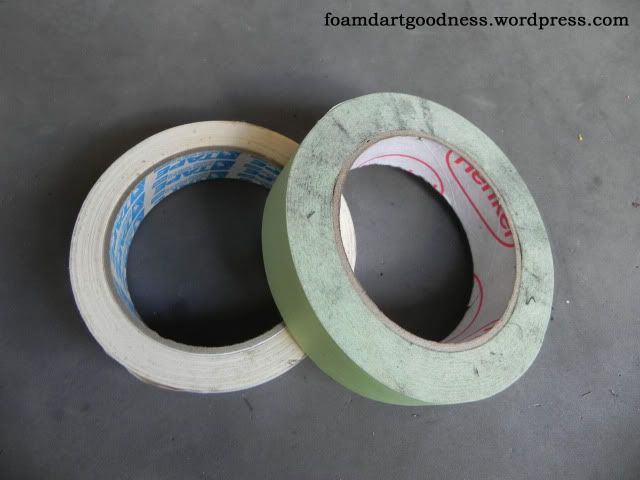

Masking tape. Used for masking off certain areas before painting. Probably not needed if you don’t intend on painting your blasters.

Photobucket

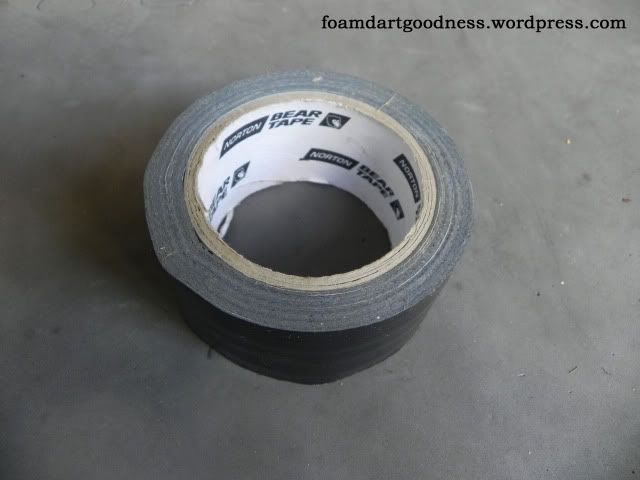

Cloth tape. Similarly to the electrical tape, cloth tape is just a useful thing to have around. I’m sure you’ll find uses for it if you had some.

Photobucket

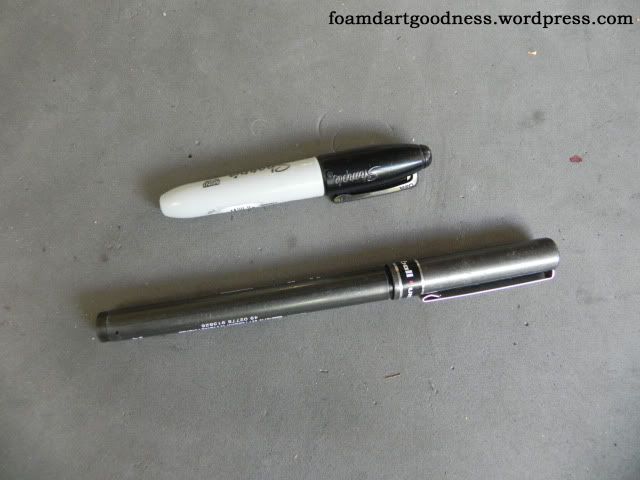

Markers. Going back to the logic above of ‘measure twice, cut once’, it really pays off to have some good quality markers around.

Photobucket

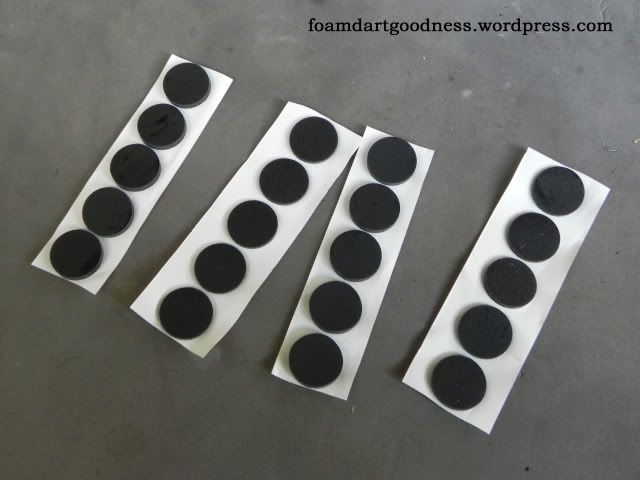

Foam padding. I haven’t actually touched on this subject before and do plan of doing a full post on it in the future, so for now I’ll be brief. Modifying your blasters will reduce their life. You can do things to mitigate against this, padding your plungers for example, but they will never last as long as if you left them as they were from the factory. I’ve tried a variety of padding’s in the past and have never really been satisfied with them. Currently testing out some OzNerfNerd ones, but don’t have any real data on them so far. Based on what the rest of the internet says you probably should get some form of padding, but I’m unconvinced personally.

Photobucket

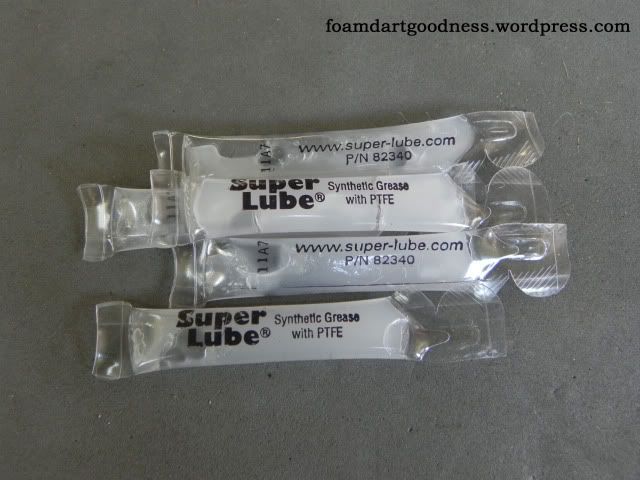

Lube. You should be lubing your blasters fairly regularly if they’re seeing regular use. Also a good idea to re-lube plungers after recreating a seal.

Photobucket

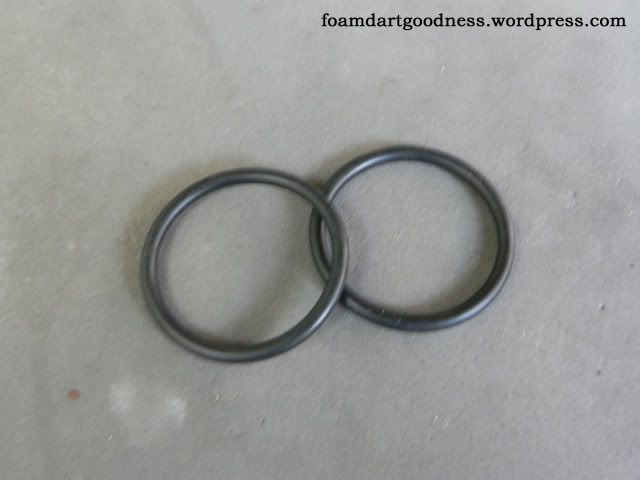

Aftermarket O-rings. There are a world of aftermarket parts suppliers out there for foam dart blasters, most of which can supply you with replacement or improved O-rings. I like to have an assortment floating around at any given time, but you could just order them as you need or even just rely on teflon tape to improve your seals.

Photobucket

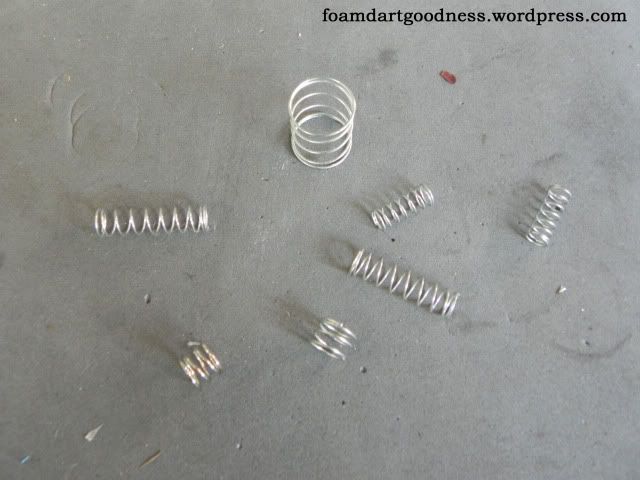

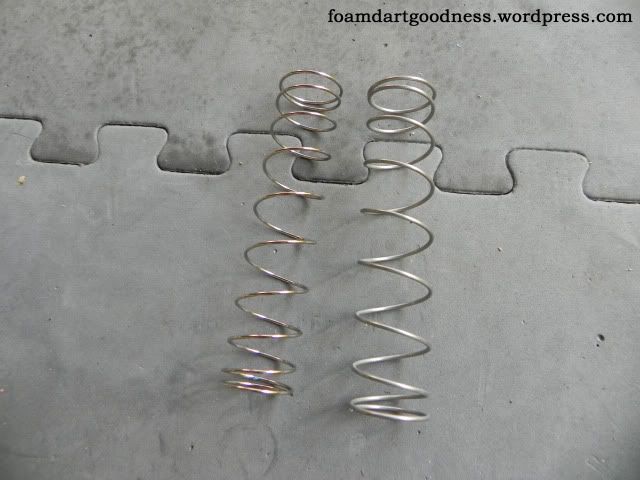

Generic collection of springs. Some of these were specifically bought but most would be left overs from other blasters (hint: don’t throw out pieces from old or broken blasters, they might come in useful some day). Very handy to have an assortment of springs around. I’ll mostly use these for improving trigger catches, but there are plenty of occasions where the perfect spring just happens to be in my bits bag.

Photobucket

Glue. I’ve only pictured a tube of Tarzan’s Grip below but you will need an assortment of different adhesives, depending on what you’re doing. Fast drying general glues, like Tazan’s Grip, are great for things where you can get a decent purchase but don’t need it to be ‘end of the world’ style strong. This includes things like nesting brass barrels, gluing PVC over-barrels to plastic blaster shells, etc. This would be my mostly commonly used glue. Your tradition Super Glue is also pretty useful for this sort of stuff.

When you need something to be super strong, you then have to move into the world of two part epoxies. There are a whole assortment of 5 minute, 24 hr, 48hr, 5 days, etc, variants out there. Personally, if I want something to stick really well, I just jump straight to the longest drying time I can find. Things like priming bars to the outside of breeches or nozzles on air tanks cop a fair amount of force, so go the epoxy there as an example.

Photobucket

PVC solvent. Used to stick PCV pipe together. Fairly self explanatory.

Photobucket

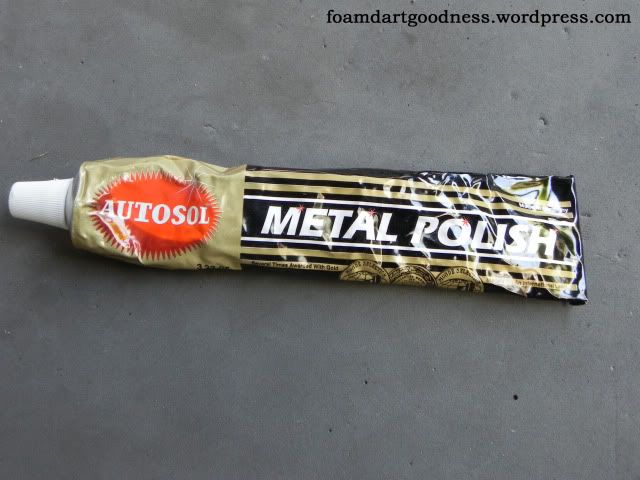

Metal polish. If you’re making a brass breech of some description you really should invest in some decent metal polish. Polish up the brass where it will be sliding over another piece and your breech will work significantly easier.

Photobucket

Modeling putty. Can be used for cosmetic purposes but I mostly use mine for reinforcing weaker parts of shells or making guides for parts to move in a certain way. Modeling shops will get you better quality stuff, but hardware stores will get you far cheaper stuff and often larger quantities.

Photobucket

Aftermarket springs. Probably not something you need to have a stack of just lying around, but something I felt worth including in here all the same. Multiple different sellers are offering replacement springs to the market today; I’m not going to praise nor bag out any of them at this stage, simply because I haven’t had enough experience with most of them.

Photobucket

Paint. When painting, I typically go for the cheapest paint available and make it work. Others throughout the internets will swear by some of the more expensive brands, good for them. To me the most important part is your prep, not the paint itself. I’ll go over more of this in detail when I actually do a re-paint for a blaster.

Photobucket

_________________________________________________________________________

Electrical!

Soldering iron and solder. Kind of a recurring theme here, but save yourself some hassle and get yourself a soldering iron if you intend on doing electrical modifications. You can often get away with a simple ‘twist and tape’ method of joining wires but some good old fashioned solder will make the join significantly stronger. Also useful for cleanly unsoldering existing wires within a blaster.
Photobucket

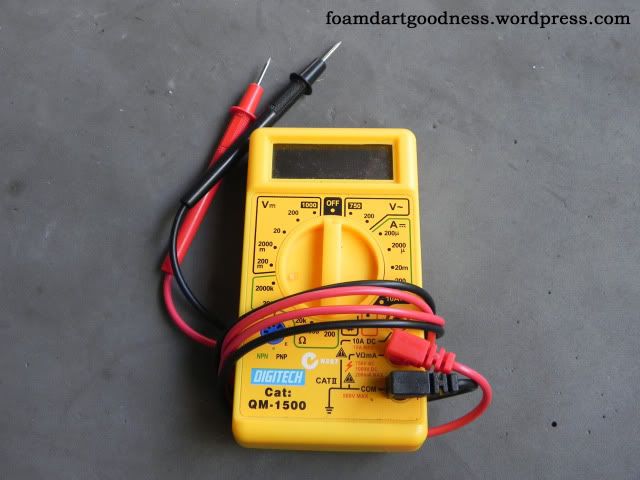

Multimeter. Another must have for electrical mods. You basically can’t troubleshoot without one.

Photobucket

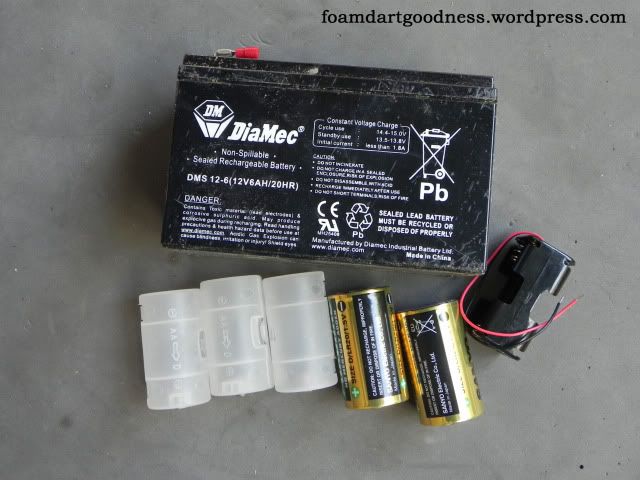

Assorted batteries and holders. Another useful thing to just have lying around for testing, but really not nessecary if you’re just following a guide you got off the internet.

Photobucket

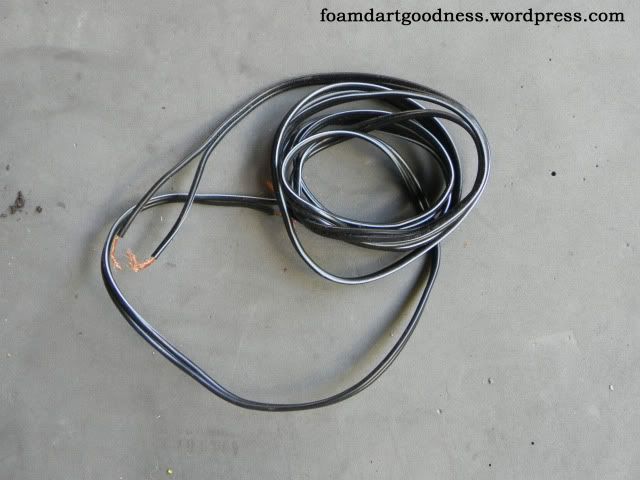

Assorted wire. Bridging connections, wiring in new battery holders; so many uses it’s not funny. If playing with electronics, you will at some point need some extra wire.

Photobucket

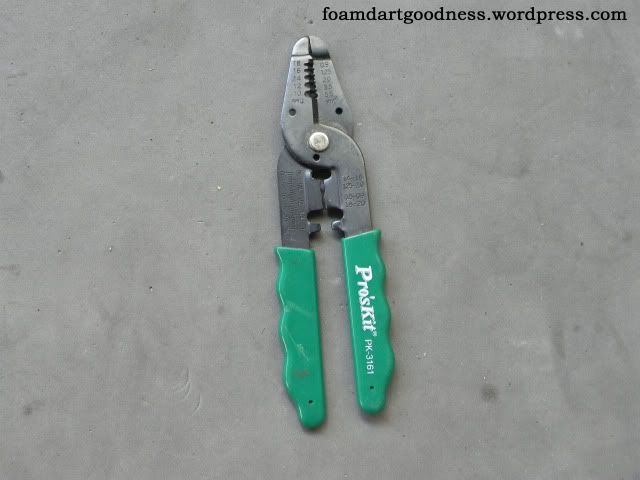

Wire strippers. Another very useful but not essential tool. If you’re skilled you can strip wires with a pair of side cutters or even a pair of scissors, but it’s far easier with the right tool.

Photobucket
